FAMCO Louvered Gable Vent - Galvanized Steel

Louvered Gable Vent – Galvanized

Rated 4.88 out of 5 based on 24 customer ratings

(24 customer reviews)

$49.95 – $499.95

Quality constructed in 28 gauge Galvanized steel
Available in three options: Flush Mount, Recessed Mount, or Flange on Back
Available in multiple sizes, shown in the dropdown. Size refers to the outer dimensions of the louvered box, and does not include the dimensions of the mounting flange

Dimensions

14 x 12 inch
16 x 26 inch
8 x 14 inch
12 x 24 inch
14 x 36 inch
20 x 14 inch
22 x 18 inch
22 x 22 inch
24 x 12 inch
24 x 16 inch
24 x 30 inch
24 x 36 inch
32 x 32 inch
8 x 8 inch
10 x 10 inch
12 x 12 inch
12 x 14 inch
12 x 16 inch
12 x 18 inch
14 x 14 inch
14 x 16 inch
14 x 18 inch
14 x 20 inch
14 x 24 inch
14 x 8 inch
16 x 16 inch
16 x 18 inch
16 x 20 inch
16 x 22 inch
18 x 18 inch
18 x 20 inch
18 x 22 inch
18 x 24 inch
20 x 16 inch
20 x 20 inch
20 x 22 inch
20 x 24 inch
24 x 24 inch

Mounting Flange

Flange on Back
Flush Mount
Recessed Mount

Clear

Your browser does not support JavaScript! This page uses JavaScript to function properly, please enable or contact us to place your order.

Compare

Add to quote

SKU GV Categories Louvered Gable Vents, Featured Products

Description

The FAMCO GV Louvered Gable Vent - Galvanized is an exterior vent for attic ventilation; air intake or exhaust applications. Available in three options: Flush Mount, Recessed Mount, or Flange on Back. Quality constructed in 28 gauge Galvanized steel. The FAMCO GV Louvered Gable Vent comes standard with a 1/8 inch insect screen. Sizes are 12x12 inch, 12x14 inch, 12x16 inch, 12x18 inch, 14x8 inch, 14x14 inch, 14x16 inch, 14x18 inch, 14x20 inch, 14x24 inch, 16x16 inch, 16x18 inch, 16x20 inch, 16x22 inch, 18x18 inch, 18x20 inch, 18x22 inch, 18x24 inch, 20x16 inch, 20x20 inch, 20x22 inch, 20x24 inch, 24x24 inch, and 24x30 inch (maximum size available). Sizes are listed width x height. The FAMCO GV Louvered Gable Vent - Galvanized is manufactured by FAMCO in the United States and comes with a 1-year warranty against product defects and workmanship. If you have any questions about this product, please refer to the FAQs above or feel free to contact us.

PDF Download

Spec Sheet

Louvered Gable Vent - Galvanized

SKU: GV

Click to Enlarge

Questions and answers of the customers

Can your louvered attic vents 24 x 24" be mounted on the inside? With the louvers pointing downward to shed the rain that falls outside ?

Q Can your louvered attic vents 24 x 24" be mounted on the inside? With the louvers pointing downwa...... Read more answer now
Asked on October 1, 2021 9:47 am

A
Yes - our "flange on back" models are designed to be installed from the interior. All of our louvered gable vents have fixed louvers angled downwards.

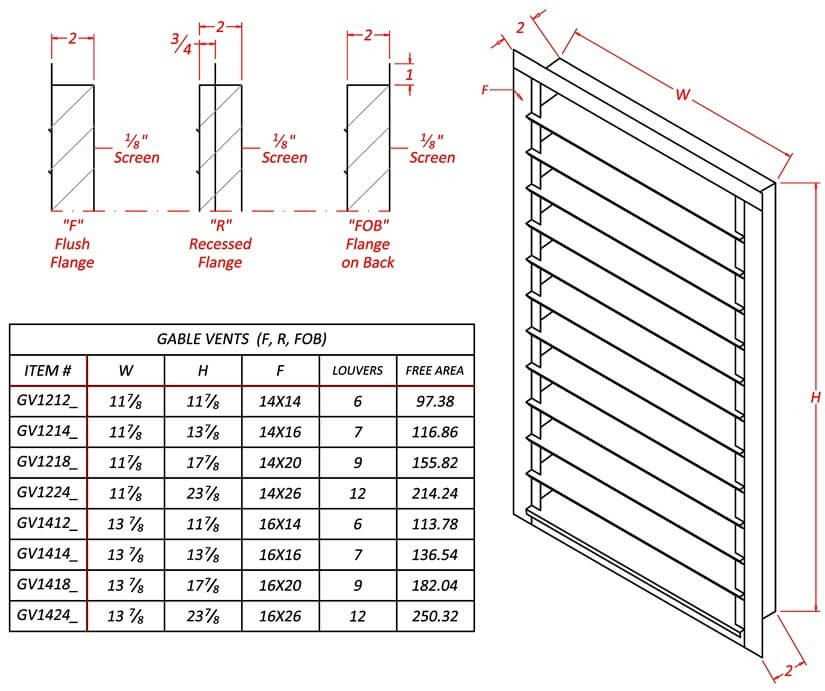

I am confused by the "W" and "H" dimensions shown on the isometric drawing above. These dimensions appear to show the rough opening required. I need two vents where the rough opening is 14"x 20". Is the vent I need a GV1218 ? Thanks in advance for your time.

Q I am confused by the "W" and "H" dimensions shown on the isometric drawing above. These dimension...... Read more answer now
Asked on August 11, 2021 11:35 am

A
our 14x20" vent would be designed for a 14x20" opening, and would include a 1" flange on all sides for mounting.

Please estimate a shipping date for the 18 x 22 GV with the flange on the back.

Q Please estimate a shipping date for the 18 x 22 GV with the flange on the back. answer now
Asked on June 25, 2021 1:50 pm

A
Manufacturing lead time and shipping transit time estimates are shown in your shopping cart before checkout.

Can you mount a screen on the inside to keep critters out?

Q Can you mount a screen on the inside to keep critters out? answer now
Asked on June 7, 2021 6:59 pm

A
This product comes with a built in 1/8" screen for keeping out most insects and pests.

What size does the rough opening need to be for the 14x16 gable vent?

Q What size does the rough opening need to be for the 14x16 gable vent? answer now
Asked on April 13, 2021 7:05 pm

A
at least 14" x 16" to fit the vent - our 14" x 16" gable vent will have a 1" flange on all sides, so the total dimensions of the vent including the 1" flange would be 16" x 18"

We need the 8x8 galvanized, air intake or exhaust vents for exterior 8 inch thick concrete block walls, we are using the two method venting, do you sell the ducts to connect the exterior louver to the interior one?

Q We need the 8x8 galvanized, air intake or exhaust vents for exterior 8 inch thick concrete block ...... Read more answer now
Asked on March 22, 2021 8:41 pm

A
We do not currently sell or supply ducting.

do the louvers close flat or do they remain open?

Q do the louvers close flat or do they remain open? answer now
Asked on February 5, 2021 11:25 am

A
The louvers on this vent are fixed, so they do not move or close flat.

What are the actual dimensions of the 20x20 and the 12x16 - in other words, are those measurements the actual height and width of the flange?

Q What are the actual dimensions of the 20x20 and the 12x16 - in other words, are those measurement...... Read more answer now
Asked on January 24, 2021 1:33 pm

A is the 12x16; 16" wide (side to side) and 12" heigh (top to bottom)? Or is it the other way around? I need one that is 16" side to side and 12" high (louvers being 16" wide).

A
The box itself would be 20x20", with a 1 inch flange on all sides, making the total dimensions with flange 22x22" (the 12x16" would be 14x18" with flange, respectively)

are the louvers adjustable or fixed?

Q are the louvers adjustable or fixed? answer now
Asked on January 24, 2021 1:09 pm

A
These will have fixed louvers.

We need a total of (12) 14x14 vents with the fob option, but don’t see where we can order these in aluminum nor the price for that option.

Q We need a total of (12) 14x14 vents with the fob option, but don’t see where we can order these i...... Read more answer now
Asked on December 26, 2020 10:51 am

A
We are currently only able to manufacture these gable vents in galvanized steel and copper, and are not able to offer them in aluminum.

What are the dimensions for the 18 x 18 Louvered Gable Vent GV1818F. I need the outside and inside dimensions.

Q What are the dimensions for the 18 x 18 Louvered Gable Vent GV1818F. I need the outside and insid...... Read more answer now
Asked on December 6, 2020 12:05 am

A
The louvered gable box will be 18"x18", with a 1" mounting flange attached on all sides, bringing the total unit dimensions to 20"x20"

24 reviews for Louvered Gable Vent – Galvanized

4.9

Based on 24 reviews

5 star	87	87%
4 star	12	12%
3 star		0%
2 star		0%
1 star		0%

Rated 4 out of 5

MATT HENNIG CASCADE POOLS – December 5, 2017

NICE QUALITY

NICE QUALITY. WE ARE PLEASED WITH THE PRODUCT, MUCH BETTER THAN BRAND WE USED TO USE. THANKS
Rated 5 out of 5

Simon Watts (verified owner) – July 18, 2019

Looks great and well constructed
Rated 5 out of 5

Eric Johnson (verified owner) – August 5, 2019

Great company with great customer service
Rated 5 out of 5

Dennis K. (verified owner) – September 30, 2019

Well made, easy installation. Would buy from again.
Rated 5 out of 5

Don H. (verified owner) – November 9, 2019

FAMCO provided the exact 14×14 replacement for the damaged vent in my garage. The superior construction of the replacement vent will be much less prone to the damage incurred by the original vent. Having the option to order the vent with the flange on the back (FOB) allowed me to temporarily install the new vent over the old vent (with the flange on front).
Rated 5 out of 5

Stephen M. (verified owner) – November 21, 2019
Rated 5 out of 5

Mark B. (verified owner) – December 1, 2019

Well made. Perfect fit. On time delivery.
Rated 4 out of 5

david jarvis (verified owner) – March 12, 2020
Rated 5 out of 5

John Goodrich (verified owner) – April 30, 2020

FAMCO was timely, had products which fit our needs, had clear description of those products on line, and gave prompt guidance when we asked questions. Their products when delivered were as advertised, well made and well packed. There were no uneducated telephone answering folks, no complicated contact menus. Good experience. I’ll use them whenever I need products they make.
Rated 5 out of 5

Michael Hartenstein (verified owner) – May 9, 2020
Rated 5 out of 5

Richard Robbins (verified owner) – May 31, 2020

12″ height slightly large.
Rated 4 out of 5

MATT HENNIG CASCADE POOLS (verified owner) – June 8, 2020
Rated 5 out of 5

Johnnie Austin (verified owner) – July 12, 2020
Rated 5 out of 5

Joe M. (verified owner) – August 11, 2020
Rated 5 out of 5

Louis D. (verified owner) – August 14, 2020

Quality product with quick delivery, what more can you ask for
Rated 5 out of 5

david jarvis (verified owner) – August 14, 2020
Rated 5 out of 5

Elizabeth Anderson (verified owner) – September 26, 2020

Well maded
Rated 5 out of 5

Stephen S. (verified owner) – October 10, 2020
Rated 5 out of 5

Robert S. (verified owner) – November 29, 2020

Perfect fit. Thank you
Rated 5 out of 5

Tricia King (verified owner) – December 7, 2020
Rated 5 out of 5

Ronald W. Fogel (verified owner) – February 23, 2021
Rated 5 out of 5

Eddie (verified owner) – March 29, 2021

Exactly what I needed. I just wasn’t exactly clear on the color/finish, but that was fine as it was easily paintable.
Rated 5 out of 5

Jim Hasstedt (verified owner) – February 9, 2024

Perfect! Ordered qty 2 of the flush mount Louvered Gable Vents. They were fabricated and received within a week and a half, were well packaged, and look like they’re well made.
Rated 5 out of 5

Daniel B. (verified owner) – September 16, 2024

Very good quality product, I was afraid they would be cheesy but that wasn’t the case. Best of all is that they were made in the USA by Americans
