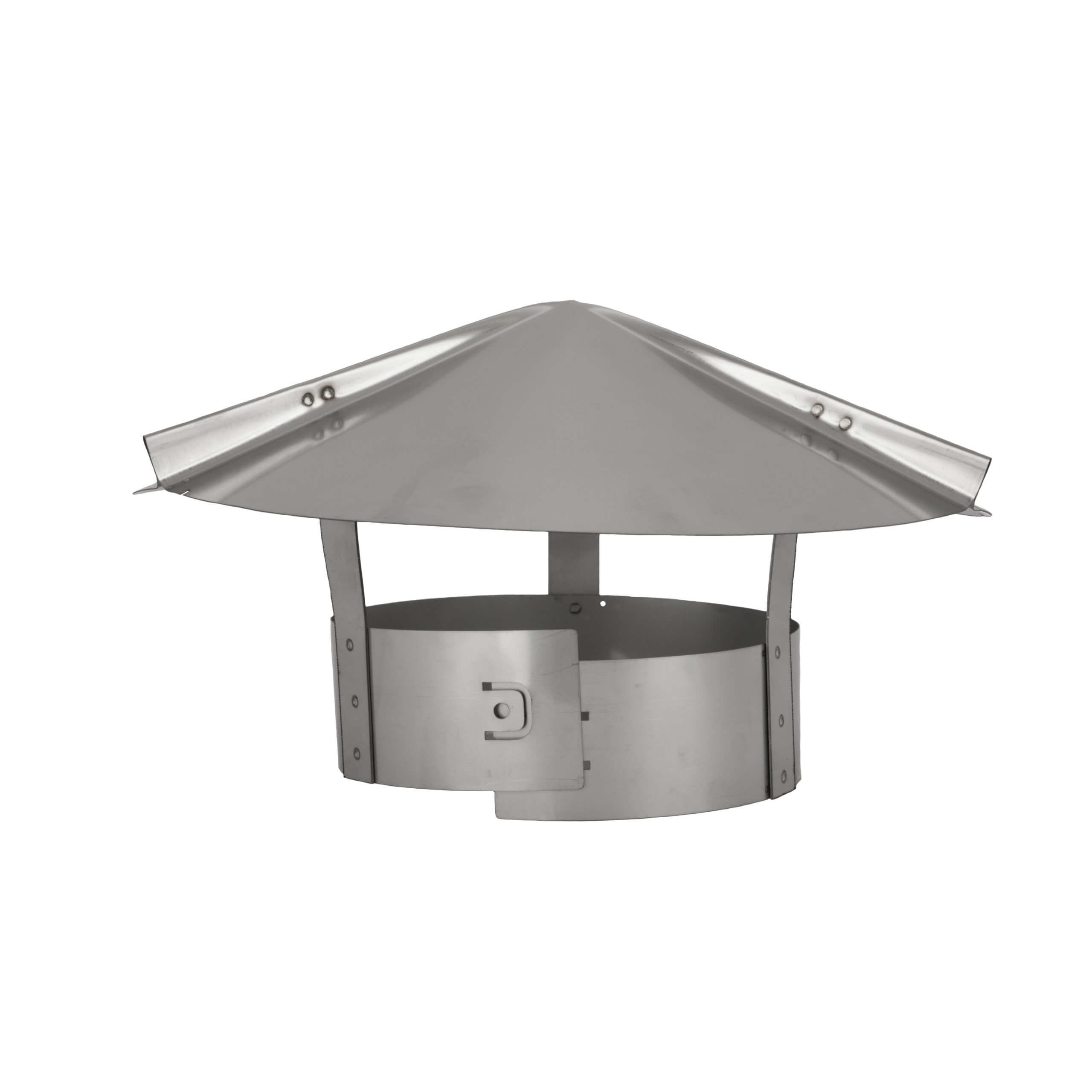

Side view of FAMCO Stainless Steel Cone Top Chimney Cap.

Cone Top Chimney Cap - Stainless Steel-1497

infographic showing how to install the FAMCO Cone Top Chimney Cap - Galvanized Steel

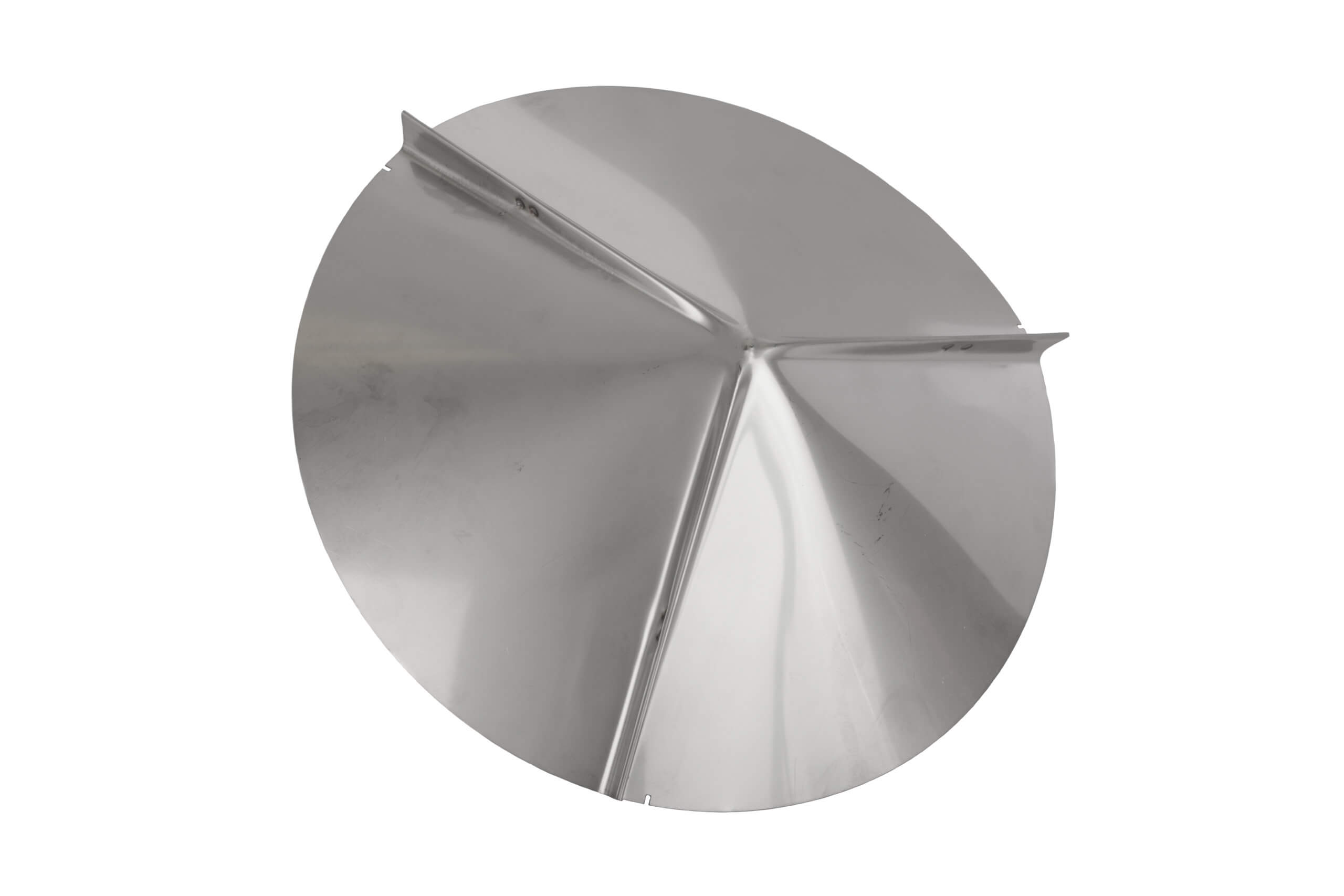

Top view of FAMCO Stainless Steel Cone Top Chimney Cap.

Cone Top Chimney Cap – Stainless Steel

Rated 4.78 out of 5 based on 9 customer ratings

(9 customer reviews)

$39.95 – $119.95

Quality constructed from heavy-duty 26 gauge stainless steel
All-weather (seamless) chimney cap to keep rain and snow from getting down the chimney pipe
Designed to be mounted over single wall pipe and comes with a draw bolt collar for a secure fit
Comes for single wall pipe sizes ranging from 3 inch to 18 inch outside diameter (not designed for double/triple wall pipe sizes)
Available for pipe sizes ranging from 3 inch to 12 inch outside diameter

Size

3 Inch
4 Inch
5 Inch
6 Inch
7 Inch
8 Inch
9 Inch
10 Inch
12 Inch

Clear

Your browser does not support JavaScript! This page uses JavaScript to function properly, please enable or contact us to place your order.

Compare

Add to quote

SKU CTSS Categories Chimney Caps | FAMCO, Round Base Chimney Caps

Description

The FAMCO CTSS cone top chimney cap is a standard replacement rain cap. It is used as an all-weather (seamless) chimney cap to keep rain and snow from getting down the chimney pipe. This product is designed to be mounted over single wall pipe and comes with a draw bolt collar for a secure fit. The adjustable collar will only provide approximately ⅛ inch of play for tightening to the appropriate pipe size, and is not designed to expand to accommodate different pipe sizes or double/triple wall pipe sizes (NOT designed to fit X&⅛”, X&¼”, X&½”, etc.). Quality constructed from heavy-duty 26 gauge stainless steel. The FAMCO CTSS cone top chimney cap comes for pipe sizes ranging from 3 inch to 12 inch OD with total cap height ranging from 5¼ inch to 10 inch, see our specs sheet for more details.. The FAMCO CTSS cone top chimney cap is manufactured by FAMCO in the United States and comes with a 1-year warranty against product defects and workmanship. If you have any questions about this product, please refer to the FAQs above or feel free to contact us.

Watch the product video on YouTube.

PDF Download

Download the CTSS product PDF.

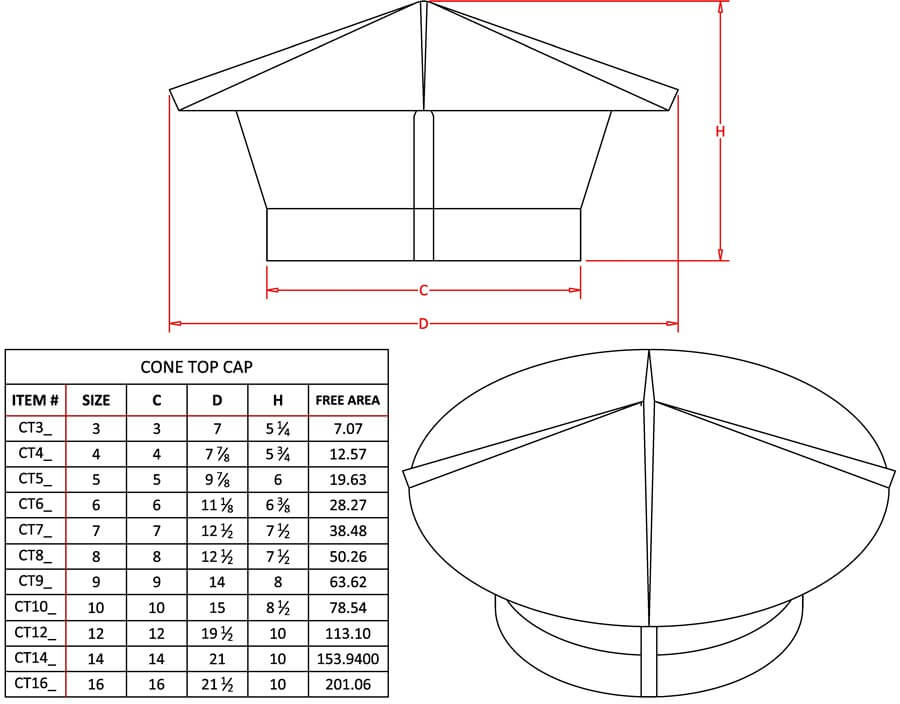

Spec Sheet

Cone Top Chimney Cap - Stainless Steel

SKU: CTSS

Click to Enlarge

Questions and answers of the customers

The chimney outside dimension is not quite 10" (9 7/8") will the band be able to tighten the cap.

Q The chimney outside dimension is not quite 10" (9 7/8") will the band be able to tighten the cap. answer now
Asked on November 6, 2020 6:20 pm

A
This may not tighten down enough to grip the pipe properly

9 reviews for Cone Top Chimney Cap – Stainless Steel

4.8

Based on 9 reviews

5 star	77	77%
4 star	22	22%
3 star		0%
2 star		0%
1 star		0%

Rated 5 out of 5

Frank (store manager) – June 5, 2017

Love the galvanized cone cap

Never had an issues at all with Famco. All products I’ve worked with have performed and look great once installed. Would always recommend them.
Rated 5 out of 5

Robert Paulis (verified owner) – August 8, 2019

After replacing galvanized caps for years, my new stainless chimney cap from Famco looks like it may be my last. Great construction and fit! Bravo Famco!!!!
Rated 5 out of 5

James J. (verified owner) – November 23, 2019

Item arrived quickly and in good in good condition. I Highly recommend.
Rated 4 out of 5

Anonymous (verified owner) – December 13, 2019
Rated 4 out of 5

Mark (verified owner) – September 27, 2020

Have to see how it preforms and how long it lasts.
Rated 5 out of 5

Dominique L. (verified owner) – November 30, 2020

Good quality products, as per specs. Sheet got a perfect fit. Was shipped as promised.
Rated 5 out of 5

William R (verified owner) – January 9, 2021
Rated 5 out of 5

Charles B. (verified owner) – March 28, 2021

This item was perfect for my installation.
Rated 5 out of 5

Forno Classico (verified owner) – February 21, 2024

Ok
