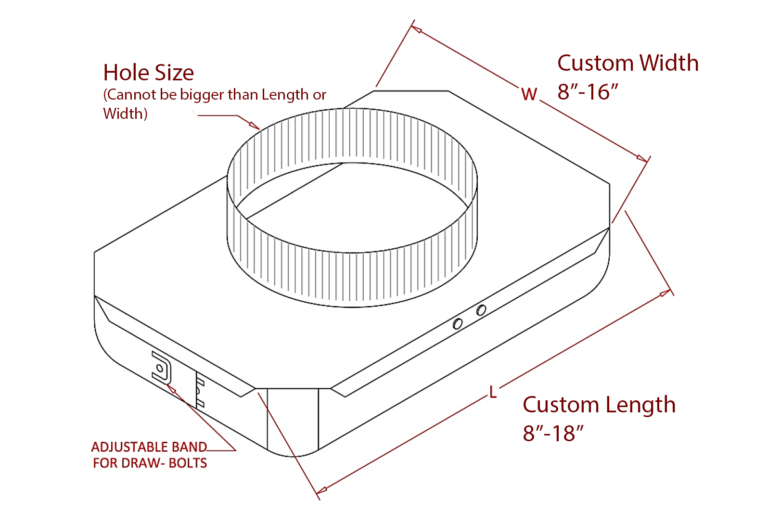

FAMCO Masonry to Metal Chimney Transition Measurement Reference

Masonry to Metal Chimney Transition – Galvanized

Rated 4.80 out of 5 based on 5 customer ratings

(5 customer reviews)

$49.95

Category: Chimney Cap – Subcategory: Adapter Material: Galvanized Steel – Finish: Mill – Thickness: 28 Gauge – Sku: ATA

We are unable to make an adapter to fit flues larger than 14″ x 18″ rectangular or 16″ x 16″ square

Hole Size *

Diameter in inches of round opening at the top of the transition box (This cannot be larger than the length or width of the box)

Flue Tile Width (in inches) *

Outside width in inches across the flue tile (measured to the nearest 1/8th inch)

Flue Tile Length (in inches) *

Outside length in inches across the flue tile (measured to the nearest 1/8th inch)

Add to quote

Compare

Add to quote

SKU ATA Categories Chimney Cap Adapters, Chimney Caps | FAMCO, Fireplace Chimney Caps

Description

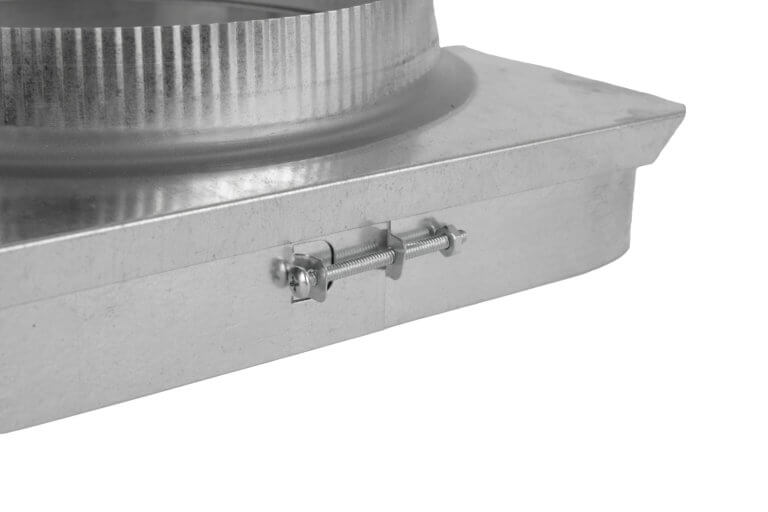

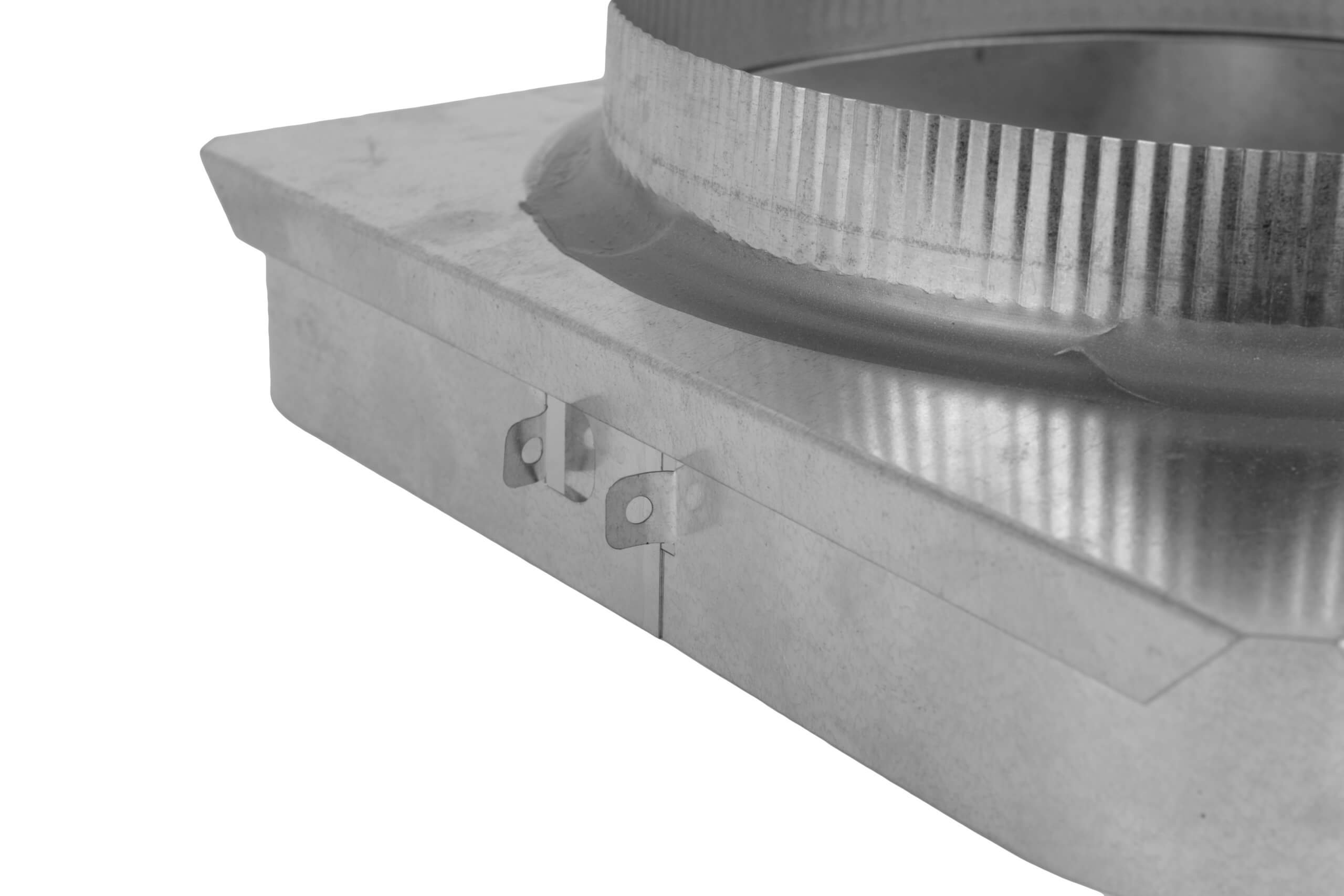

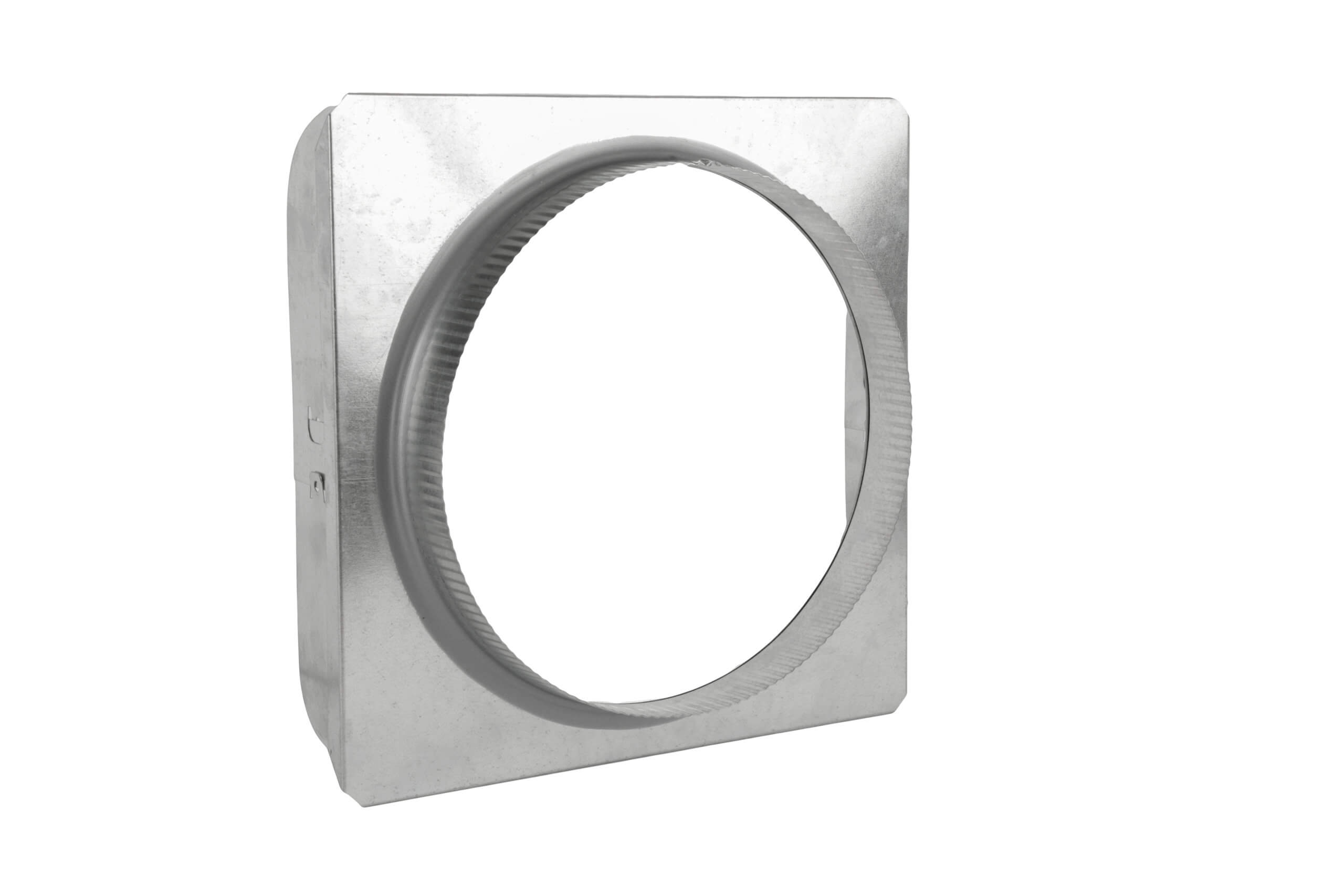

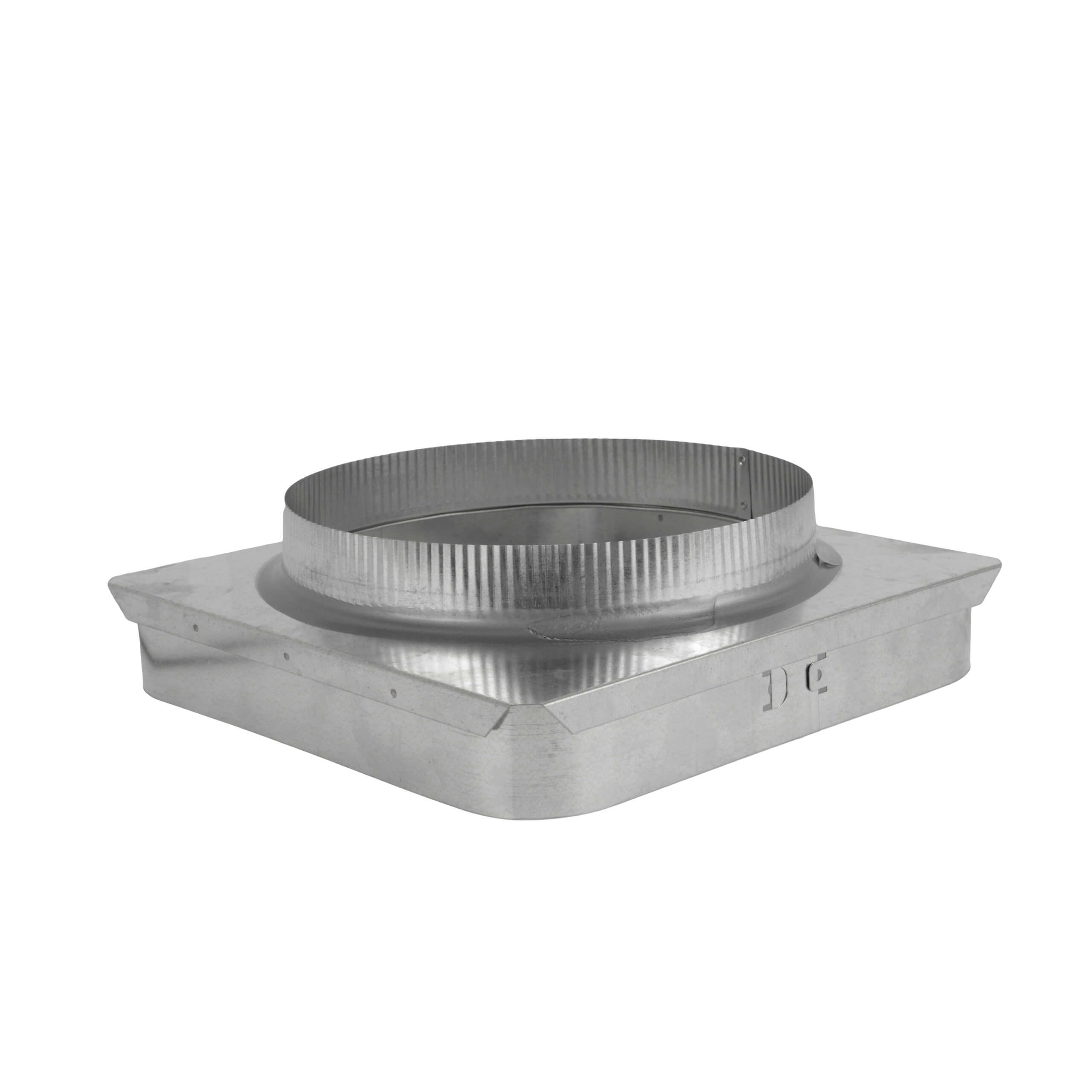

The FAMCO ATA Tile Cap Adapter allows a square chimney tile or flue to accept round caps to terminations. The adapter fits over masonry and tile chimneys. This product includes a draw bolt collar for easy installation and a secure fit. Quality constructed in 28 gauge Galvanized steel. The FAMCO ATA Tile Cap Adapter is a custom item requiring your exact length and width measurements for the outside dimensions of your flue. These sizes work with a range of diameter openings from 4" to 16". The overall height of the adapter is 3½". Make sure to take accurate measurements to ensure ordering the correct size. We are unable to make an adapter for flues larger than 14" x 18" rectangular or 16" x 16" square. The FAMCO ATA Tile Adapter is manufactured by FAMCO in the United States and comes with a 1-year warranty against product defects and workmanship. Please note that this adapter is built custom sized to fit your flue, and is not eligible to be returned for a refund. If you have any questions about this adapter, please refer to the FAQs above or feel free to contact us.

PDF Download

Download the ATA product PDF.
ATA & ATASS SPECS PDF DOWNLOAD

Spec Sheet

Questions and answers of the customers

I Have built a new porch roof over my old roof. the top for the chimney is a clay flue with outside dimensions 12 7/8 X 11 5/8 X 7/8"Thick. will this product fit. i just need to add 5.5' of 6" pipe.. Will this fit over the clay flu?

Q I Have built a new porch roof over my old roof. the top for the chimney is a clay flue with outsi...... Read more answer now
Asked on November 25, 2020 1:18 pm

A
This product is not rated to support pipe, and is only designed to have a cap mounted on top. It can be made to fit custom dimension flues.

So am adding a 2 story on my house and I currently have a 1 story high chimmey on that end of the house. The new addition will not only be taller but wider enclosing the current chimmey making it need to be taller. Could I remove the current chimmey down to the new floor height of addition, and start from there with your adapter and pipe up to roof?

Q So am adding a 2 story on my house and I currently have a 1 story high chimmey on that end of the...... Read more answer now
Asked on October 30, 2020 8:00 pm

A
No - our adapter is only designed to mount to the flue with a chimney cap above, and should not be used to support additional pipe.

5 reviews for Masonry to Metal Chimney Transition – Galvanized

4.8

Based on 5 reviews

5 star	80	80%
4 star	20	20%
3 star		0%
2 star		0%
1 star		0%

Rated 5 out of 5

John Trosko Jr. (verified owner) – June 20, 2020

Ten days is a long time but it was is awesome!
Rated 5 out of 5

antonio ruiz (verified owner) – September 1, 2020

Exelente
Rated 4 out of 5

Anonymous (verified owner) – November 13, 2020
Rated 5 out of 5

Chris B. (verified owner) – February 20, 2021

I was impressed with the quality of the metal fabrication and the reasonable cost of the components. Any other projects that come up that would use items that FAMCO manufactures, we definitely will be return customers.
Rated 5 out of 5

Chuck (verified owner) – March 15, 2021
