Product Details
Application
Chimney
Connection
Single-wall Pipe

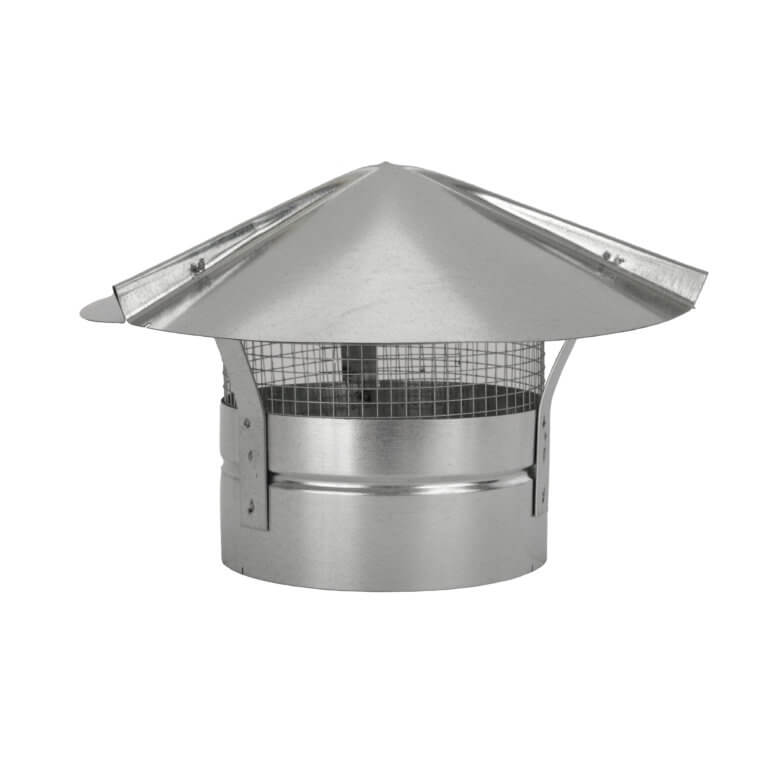

Cone Top Chimney Cap with Screen – Galvanized
SKU CTS
Price range: $39.95 through $141.95
The FAMCO Difference
- Quality constructed from heavy-duty 28 gauge galvanized steel
- All-weather (seamless) chimney cap to keep rain and snow from getting down the chimney pipe
- Designed to be mounted over single wall pipe and includes fixed base band with built in ¼ inch screen (Not rated as a spark arrestor, consult your local building codes for chimney screen requirements before purchasing)
- Available for pipe sizes ranging from 3 inch to 18 inch outside diameter (not designed for double/triple wall pipe sizes)
Shipping & Returns
Description
The FAMCO CTS cone top chimney cap with screen is a standard replacement rain cap. It is used as an all weather (seamless) chimney cap to keep rain and snow from getting down the chimney pipe. This product is built for a single wall pipe and comes with a built in ¼ inch screen (Not rated as a spark arrestor, consult your local building codes for chimney screen requirements before purchasing). Please note: this model with built in screen has a fixed base and will not include an adjustable drawbolt collar. Quality constructed from heavy-duty 28 gauge galvanized steel.
The FAMCO CTS cone top chimney cap with screen comes for pipe sizes ranging from 3 inch to 18 inch OD with total cap height ranging from 5¼ inch to 10 inch, see our specs sheet for more details. The FAMCO CTS Cone Top Chimney Cap is manufactured by FAMCO in the United States and comes with a 1-year warranty against product defects and workmanship. If you have any questions about this product, please refer to the FAQs above or feel free to contact us.
Resources
Product Specs
Reviews (109)
109 reviews for Cone Top Chimney Cap with Screen – Galvanized
4.94
Based on 109 customer reviews.
1-5 of 109 reviews
Back to Reviews
You must be logged in to post a review
Log In
Questions & Answers (1)
Ask a question
You must be logged in to ask a question
Log In
Q
my chimney is 14 1/2. Will this fit over it? Thank you
A
No - our caps would not be able to fit this pipe size, unfortunately.
(0)
(0)
Add an answer
You must be logged in to answer a question
Log In
Q
My chimney is 9.25" outside diameter, do I need to buy a 10" that will have a 3/4" gap, or a 9" and slam in on hoping it don't break?
A
Hello,
Most people would likely go with the 10" model and come up with some sort of shim to fill that 3/4" gap. Otherwise, if you were to get one of our Chimney Caps without the Screen in it then it would come with an adjustable collar and you may be able to get 1/4" play out of it, in which case you could probably get away with using a 9" model. The caps with the screens though do not have those adjustable collars. So you're best options are going to be to use the 10" model with the screen and come up with some sort of shim(s), or get the 9" model without the screen and just install your own type of screen/meshing on it after it's installed if you really need that on there.
-Customer Support
(0)
(0)
Add an answer
You must be logged in to answer a question
Log In
Q
I ordered the 14 inch as i have a clay 14 in flue, how can i attach it ?
A
You would fix this cap over outside of your flue pipe. for additional secureness, you may use sheet metal screws as needed
(0)
(0)
Add an answer
You must be logged in to answer a question
Log In
Q
How do you recommend attaching this without the draw bolt collar?
A
We'd recommend attaching it to the pipe using sheet metal screws.
(0)
(0)
Add an answer
You must be logged in to answer a question
Log In
Q
My pipe measures 6"5/8. What size will fit?
A
No - these caps will not fit odd pipe sizes, they will be too tight or too lose.
(0)
(0)
Add an answer
You must be logged in to answer a question
Log In
