Round Soffit / Under Eave Vent – Plastic – 4inch

Rated 4.86 out of 5 based on 36 customer ratings
(36 customer reviews)

$15.95

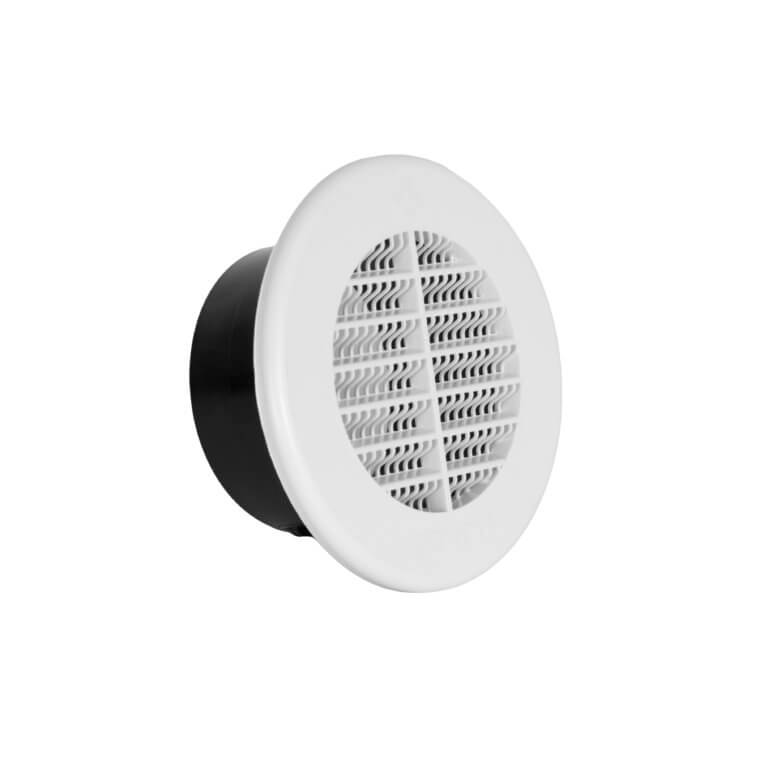

  • Viewable fascia is made of paintable ABS plastic with UV protection
  • Fascia can be rotated after installation, and includes integrated screen for pest control
  • Tube portion is made of polypropylene for superior weather performance and longevity of use

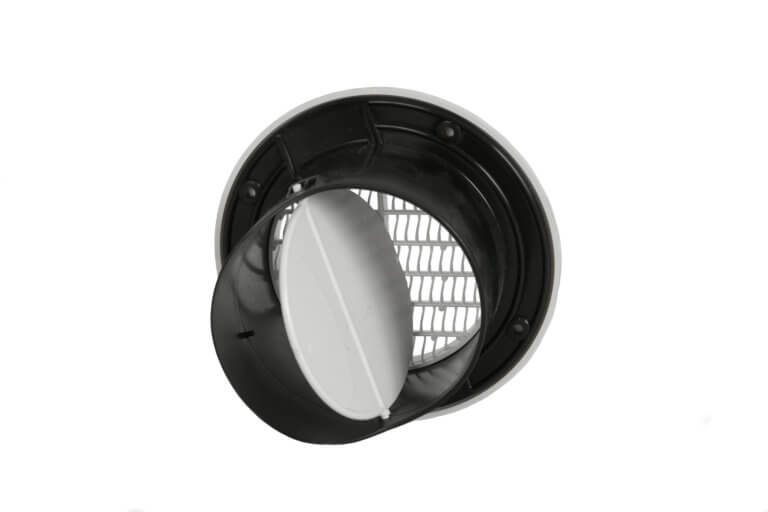

  • includes a built-in weighted backdraft damper – damper is removable for use as an intake vent.
  • Offers multiple mounting holes and built with a “hose grabber” to hold flex tube in place with the longest stem length available
  • available in brown, beige and white fascia
  • Sized for connections 4 inches in diameter

SKU UEVD4 Categories ,

Description

The FAMCO UEVD4 plastic under eave or soffit vent is used for piped exhaust applications and most typically in bathroom fan exhaust ventilation. This bathroom vent cap has both a removable face and a removable damper. The UEVD4 has an adjustable grille and is designed for easy installation with long term durability. The viewable fascia is made of paintable ABS plastic with UV protection. The fascia can be rotated after installation, and includes integrated screen for pest control. The tube portion is made of polypropylene for superior weather performance and longevity of use. Offers multiple mounting holes and built with a "hose grabber" to hold flex tube in place with the longest stem length available. The FAMCO UEVD4 plastic under eave or soffit vent is sized for openings 4 inches in diameter. The UEVD4 is available in brown, beige and white.  The FAMCO UEVD4 is manufactured by FAMCO in the United States and comes with a 1-year warranty against product defects and workmanship. If you have any questions about this product, please refer to the FAQs above or feel free to contact us.

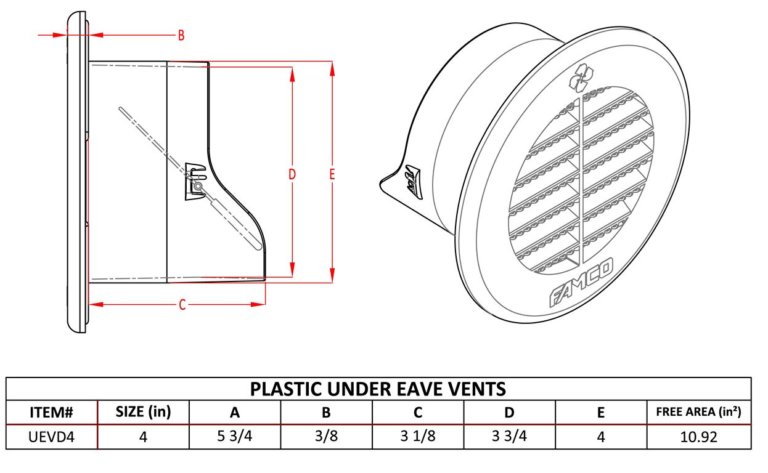

Spec Sheet

Print Spec Sheet

Round Soffit / Under Eave Vent – Plastic – 4inch

SKU: UEVD4

Questions and answers of the customers

    My present soffit vents are 3 inch. The sofit is 25 ft up. I do not want to expand the exiting 3 inch holes to 4 inches in diameter. Do you make a vent for a 3 inch hole?
  1. Q My present soffit vents are 3 inch. The sofit is 25 ft up. I do not want to expand the exiting 3 ...... Read more answer now
    Asked on April 16, 2021 10:15 am
    A

    We do not - however, we do make a 3 inch to 4 inch adapter that can be used with this soffit vent to take it down to a 3" opening, this can be found on our website here:

    https://woocommerce-337518-1039146.cloudwaysapps.com/product/plastic-4-inch-to-3-inch-duct-reducer/



  2. So...if it hangs underneath the soffit, the damper is spring loaded to close when the bathroom exhaust fan is off...am I correct?
  3. Q So...if it hangs underneath the soffit, the damper is spring loaded to close when the bathroom ex...... Read more answer now
    Asked on November 2, 2020 3:45 pm
    A

    While it is not spring loaded, the damper is slightly weighted on one end that rests on a small peg, closing the damper until the force of the exhaust pivots the damper open.

36 reviews for Round Soffit / Under Eave Vent – Plastic – 4inch

4.9
Based on 36 reviews
5 star
88
88%
4 star
8
8%
3 star
2
2%
2 star
0%
1 star
0%
  1. Rated 5 out of 5

    Jack

    Just what I needed

    Put in a bathroom fan and needed a compact vent due to small soffit dimensions. This was perfect. Found the flapper to oscillate during use so added nickel sized self-adhesive furniture pad to dampen. That worked and the oscillation was probably caused by erratic airflow through ducting, not a design defect. Will be installing same for next bathroom upgrade.

  2. Rated 5 out of 5

    LESLI A. (verified owner)

    Received or order in a very short time. The vents work perfectly with the flexible 4×25 ft flex duct for bath fan exhaust. You will need a 4-3/8″ hole saw.

  3. Rated 5 out of 5

    Anonymous (verified owner)

  4. Rated 5 out of 5

    Ralph (verified owner)

  5. Rated 5 out of 5

    HOLLIS PICKETT (verified owner)

  6. Rated 5 out of 5

    Bob W. (verified owner)

  7. Rated 5 out of 5

    Joyce Thomas (verified owner)

    Exactly what I was looking for. Very helpful when I called. Shipping cost was crazy, but Famco really can’t be held accountable for that.

  8. Rated 5 out of 5

    Robin Henderson (verified owner)

  9. Rated 3 out of 5

    John D. (verified owner)

    Functional, small size and low profile, fairly obvious to use but instructions would have been appreciated.

  10. Rated 5 out of 5

    Forrest Groves (verified owner)

    I wanted a brown soffit vent for bathroom exaust fan and it had to fit a small area. This was perfect. I installed this in about 1/2 an hour. It helped that the bathroom ceiling was open to place vent hose close to 4 1/8″ hole I drilled in soffit. Cover snapped right on with no problem. I did ream mounting holes with countersink bit so flat head screws didnt stick out. Dont know if it was necessary but didnt hurt. Would buy again if I needed another one.

  11. Rated 4 out of 5

    GEORGE LOPEZ (verified owner)

    Great value good product.

  12. Rated 5 out of 5

    James Smith (verified owner)

  13. Rated 5 out of 5

    Brian (verified owner)

  14. Rated 5 out of 5

    Dayle (verified owner)

  15. Rated 5 out of 5

    David M. (verified owner)

    Nice vent and easy to install. I super glued insect screen to it to keep bugs out.

  16. Rated 4 out of 5

    Gary (verified owner)

    Well built and easy to install. I did find that the baffle can open past the vertical and might tend to stay open. I drilled a couple tiny holes and ran a wire across to prevent it opening too far, and I glued a penny to the baffle to give it a little more closure weight. (I think I saw the same thing in another review. You might want to mold in a couple tabs to keep the baffle from over-rotating.

  17. Rated 5 out of 5

    Marc (verified owner)

    As advertised.

  18. Rated 5 out of 5

    Anonymous (verified owner)

  19. Rated 5 out of 5

    Anonymous (verified owner)

    As Advertised

  20. Rated 5 out of 5

    Anonymous (verified owner)

  21. Rated 5 out of 5

    Rodney Tavano (verified owner)

  22. Rated 5 out of 5

    Martin (verified owner)

    Shipping cost is too high!

  23. Rated 5 out of 5

    James S. (verified owner)

    Like to built in damper

  24. Rated 5 out of 5

    Steve Greenberg (verified owner)

    Haven’t installed it as of yet, but it looked well built, like all your products

  25. Rated 5 out of 5

    Terrance Edwards (verified owner)

    Love it. There needs to be very fine brass mesh screens added on the inside to the filter only to make these perfect to me.

  26. Rated 5 out of 5

    Lester C. (verified owner)

  27. Rated 5 out of 5

    Gerald S. (verified owner)

    Thanks!

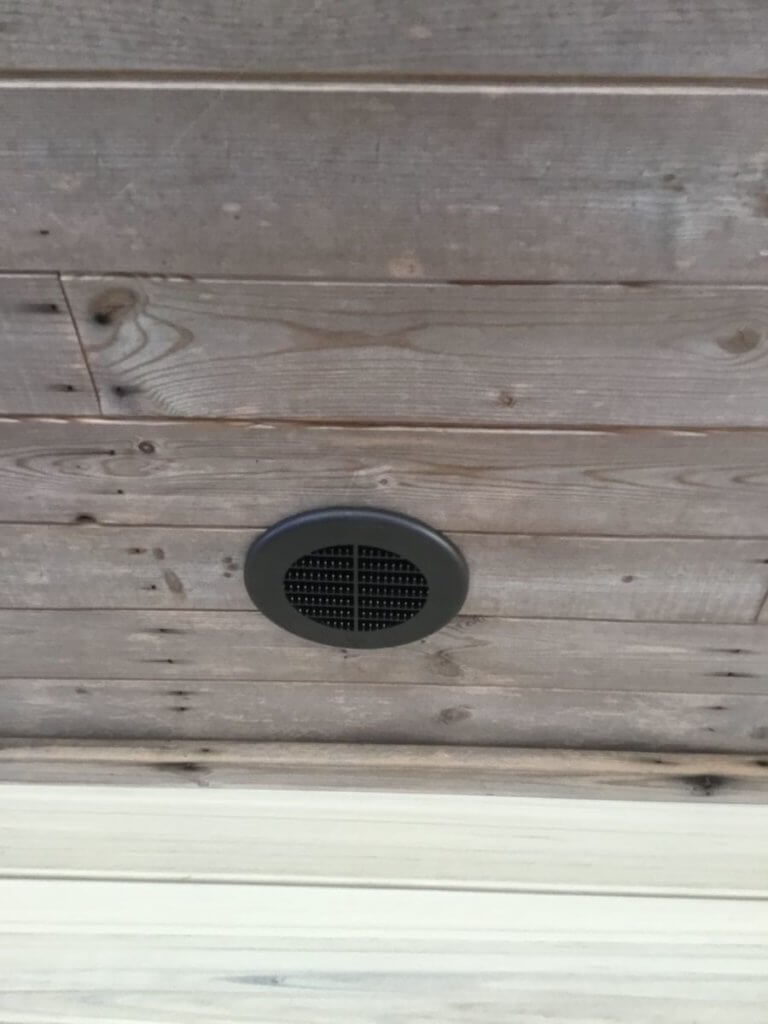

    Image #1 from Gerald S.
  28. Rated 5 out of 5

    Dennis Arguin (verified owner)

    High quality vents! Nothing at ANY building home center even compares!

  29. Rated 5 out of 5

    Bobby R.

    Good product., However I would absolutely advise against using 4 3/8 inch hole saw. That is too big make the 4 inch product difficult to center in the hole. Your screws might not find purchase in the material you are screwing into. I wish I had used a 4 inch hole saw. No reason to go bigger.

  30. Rated 5 out of 5

    Edward Prins (verified owner)

  31. Rated 5 out of 5

    David (verified owner)

    Just the part I was looking for. Wished it had a bug screen in it.

  32. Rated 5 out of 5

    Michael (verified owner)

    Great quality and clean installation. The damper seems to get stuck in the open position sometimes, but I’ll watch it long term and see if it finds its groove.

  33. Rated 5 out of 5

    JIM H. (verified owner)

  34. Rated 5 out of 5

    David K. (verified owner)

  35. Rated 4 out of 5

    Michael K

    Do not use as a dryer vent cover. Recently did a dryer duct cleaning for a customer who had this vent installed on their soffit for a second floor dryer with a soffit exhaust location. The fine filter grid was completely clogged shut with lint that was caked together and impossible to remove without a rigid pick. Had to cut the fine grid pattern out with a multi tool to make the configuration functional. Needless to say the contractors who built this home were not thinking clearly, or cutting corners using this as the vent cover since they likely had ordered many of them for the numerous upstairs bathroom vents.

  36. Rated 5 out of 5

    Steven L. (verified owner)

    Second one I’ve bought. Blends perfectly into our soffit.
