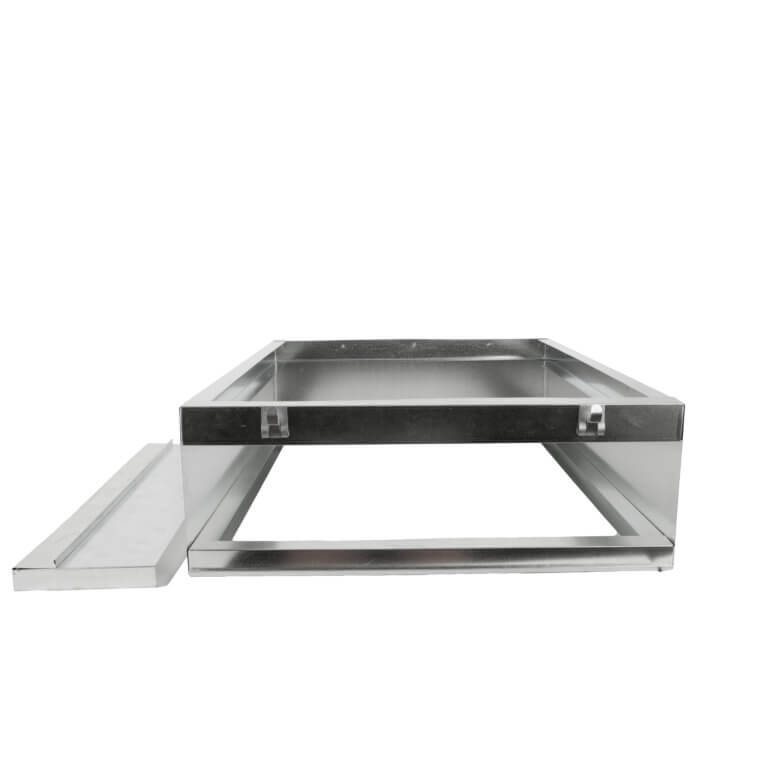

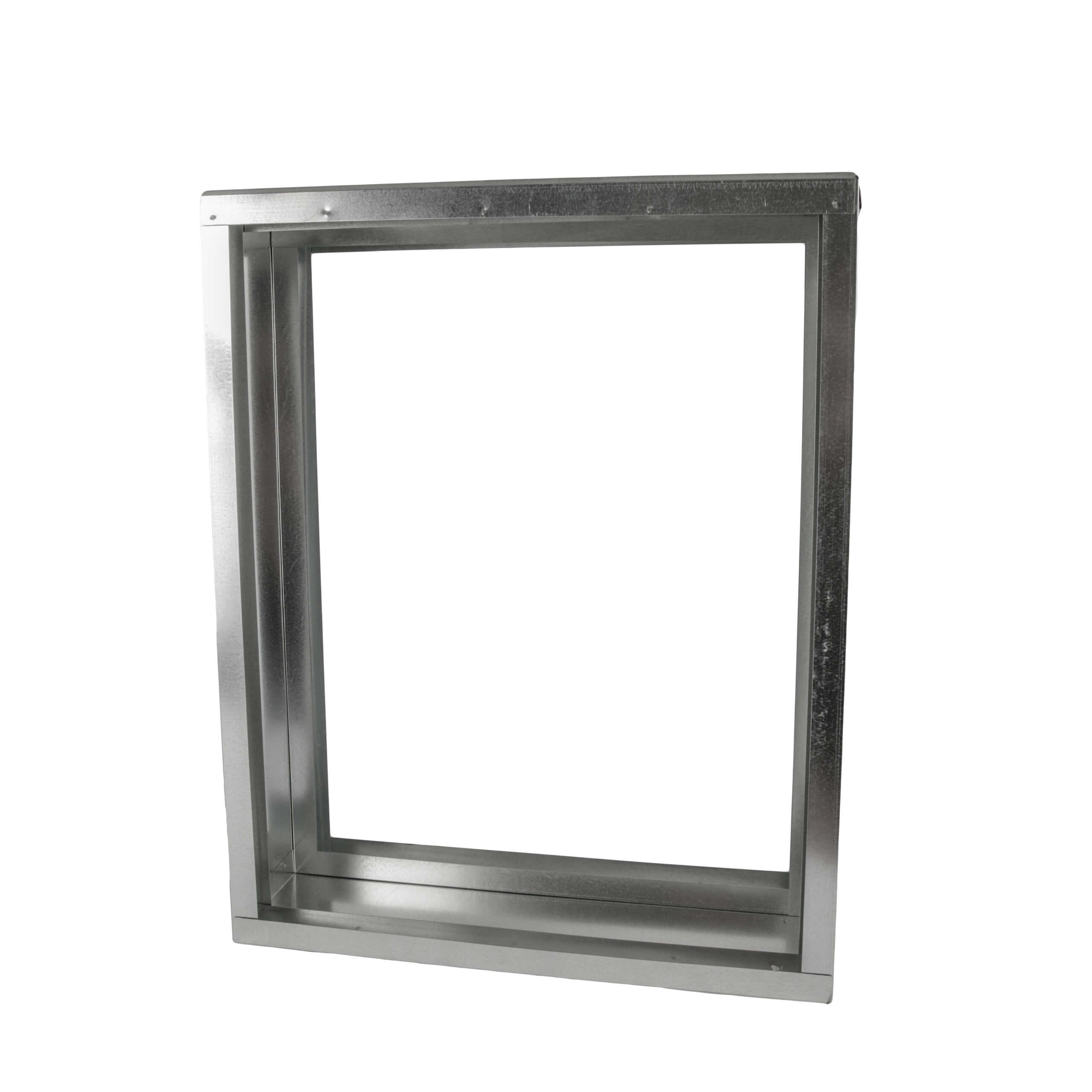

FAMCO Furnace Filter Rack - Galvanized Steel (Closed Front View)

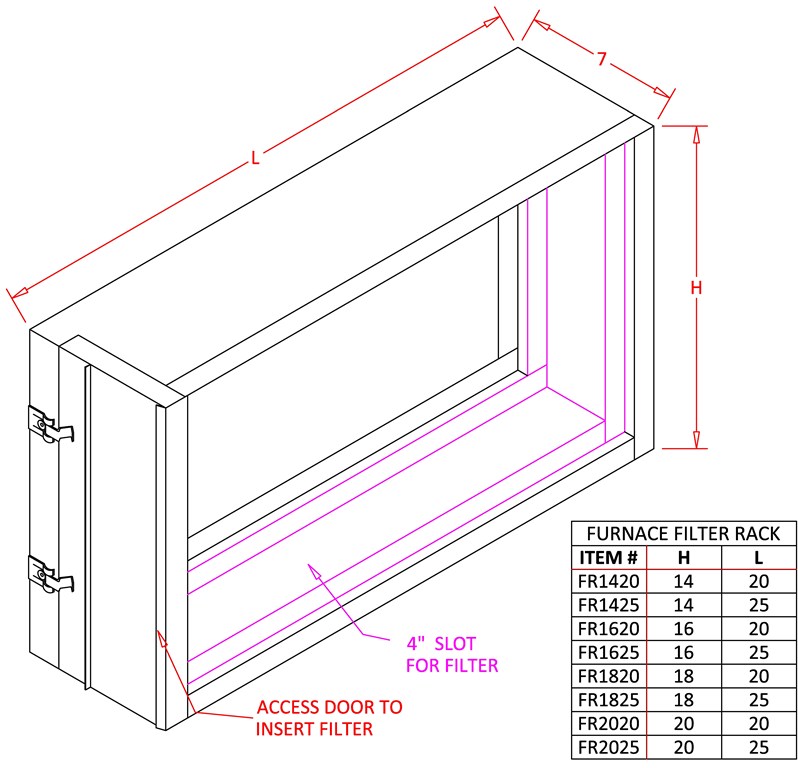

FAMCO Furnace Filter Rack - Galvanized Steel (Specifications)

Furnace Filter Rack

Rated 4.73 out of 5 based on 11 customer ratings

(11 customer reviews)

$125.95 – $152.95

Quality constructed from heavy-duty 28 gauge galvanized steel
Easy filter access with use of snap clips and simplified “door”
Made to hold a 4 inch furnace filter – smaller filters can be used, although you will need to secure the filter using spacers at the corners to prevent them from moving in the slot, these are not provided with this product.
For an option with removable channels for multiple filter sizes, see our FRB filter rack base
Come in a range of sizes to fit common sized ducting: 14 x 20 inch up to 20 x 25 inch

Dimensions

14x20 inch
14x25 inch
16x20 inch
16x25 inch
18x20 inch
18x25 inch
20x20 inch
20x25 inch

Clear

Your browser does not support JavaScript! This page uses JavaScript to function properly, please enable or contact us to place your order.

Compare

Add to quote

SKU FR Categories Accessories, Furnace Filter Rack

Description

The FAMCO FR furnace filter rack is made to hold a 4 inch furnace filter – smaller filters can be used, although you will need to secure the filter using spacers at the corners to prevent them from moving in the slot, these are not provided with this product. For an option with removable channels for multiple filter sizes, see our FRB filter rack base. Easy filter access with use of snap clips and simplified "door". Quality constructed from heavy-duty 28 gauge galvanized steel. The FAMCO FR furnace filter rack come in a range of sizes to fit common sized ducting: 14 x 20 inch up to 20 x 25 inch. The FAMCO FR furnace filter rack is manufactured by FAMCO in the United States and comes with a 1-year warranty against product defects and workmanship. If you have any questions about this product, please refer to the FAQs above or feel free to contact us.

PDF Download

Spec Sheet

Questions and answers of the customers

Can the door be rotate 90 degrees to open on the long side?

Q Can the door be rotate 90 degrees to open on the long side? answer now
Asked on February 17, 2021 12:15 pm

A
The door to the furnace filter rack does not open to a 90 degree angle using a hinge. It is a simplified door that is held in place with snap clips.

A YES

I do not see width listed anywhere. 14 x 25 x ? This shows a "1" on the chart?

Q I do not see width listed anywhere. 14 x 25 x ? This shows a "1" on the chart? answer now
Asked on October 28, 2020 10:04 am

A
All of our filter rack sizes will be 7" with 4" filter slot

11 reviews for Furnace Filter Rack

4.7

Based on 11 reviews

5 star	72	72%
4 star	27	27%
3 star		0%
2 star		0%
1 star		0%

Rated 5 out of 5

davep – November 22, 2017

Good product

The filter rack was well packaged and received without damage. It is nicely made and exactly as per print on the web site. The filter door is a bit difficult to open (at least for the first time), but it seals well. I am very pleased.
Rated 4 out of 5

Coloradodonkey – February 5, 2018

Pretty good

A little lighter guage than I would like but seems to work OK . It did come quickly and the filter fits perfect.
Rated 5 out of 5

ray braun (verified owner) – July 28, 2019
Rated 5 out of 5

Eric (verified owner) – July 28, 2019

Excellent quality and competitive pricing, thank you
Rated 4 out of 5

steven robinson (verified owner) – October 29, 2019
Rated 5 out of 5

Robert Auxier (verified owner) – November 8, 2019
Rated 5 out of 5

Robert Campbell (verified owner) – March 10, 2020
Rated 5 out of 5

Roger Houser (verified owner) – May 25, 2020

Good service. Good product.
Rated 5 out of 5

Dominic (verified owner) – October 24, 2020
Rated 4 out of 5

Colin H. (verified owner) – February 13, 2021
Rated 5 out of 5

David Rolf (verified owner) – December 6, 2024

Item well built and looks great too. I did a little modification and made small clips at the corners to hold the filter tight so it has a good seal as the furnace and filter are horizontal. Would most definitely buy again!
