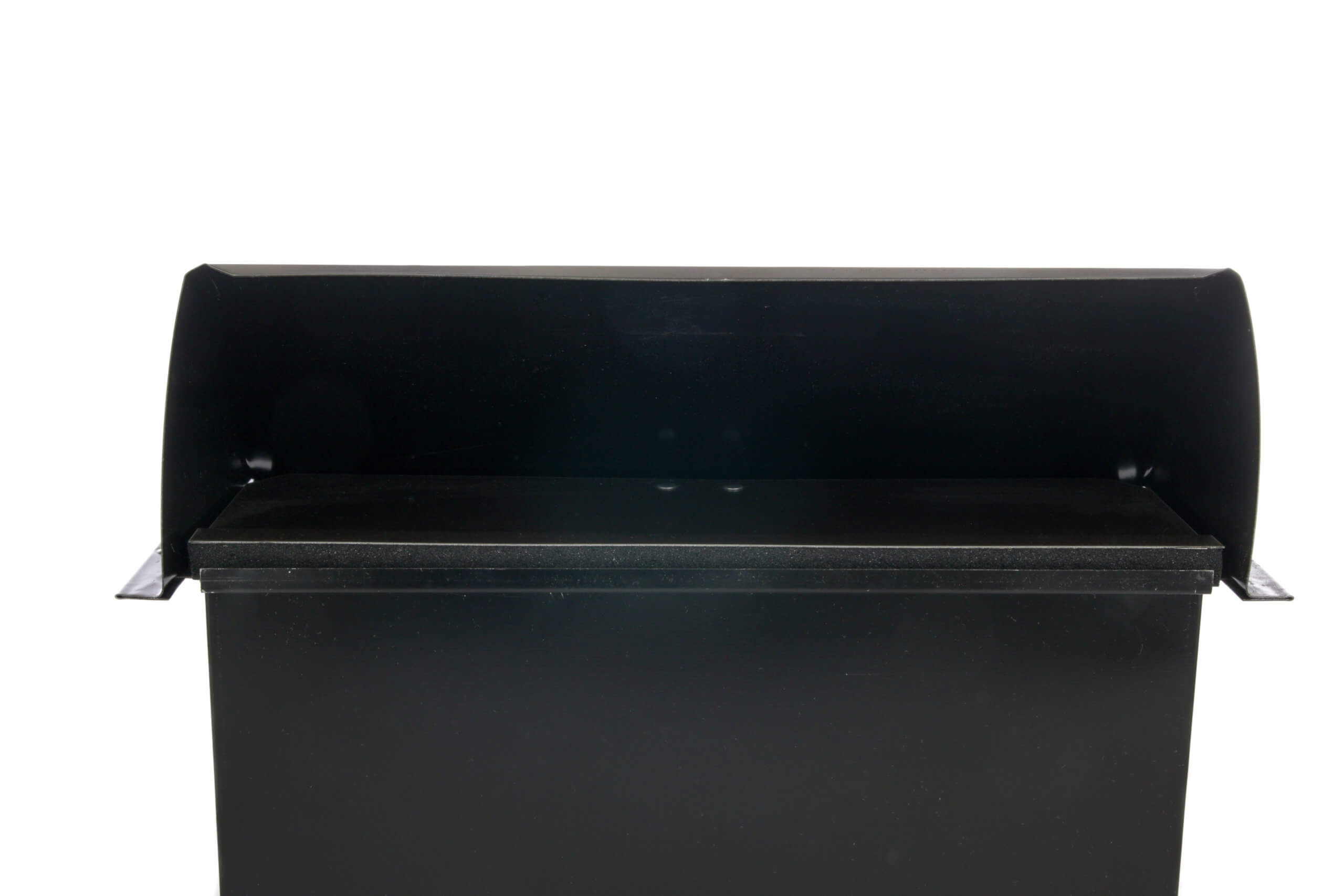

Rectangular Wall Vent 3-1/4 in. x 10 in. - Painted
$46.98 – $50.30
- Compact hood designed for through-wall kitchen range exhaust in narrow clearance terminations
- Quality constructed from heavy-duty 28 gauge pre-painted galvanized steel

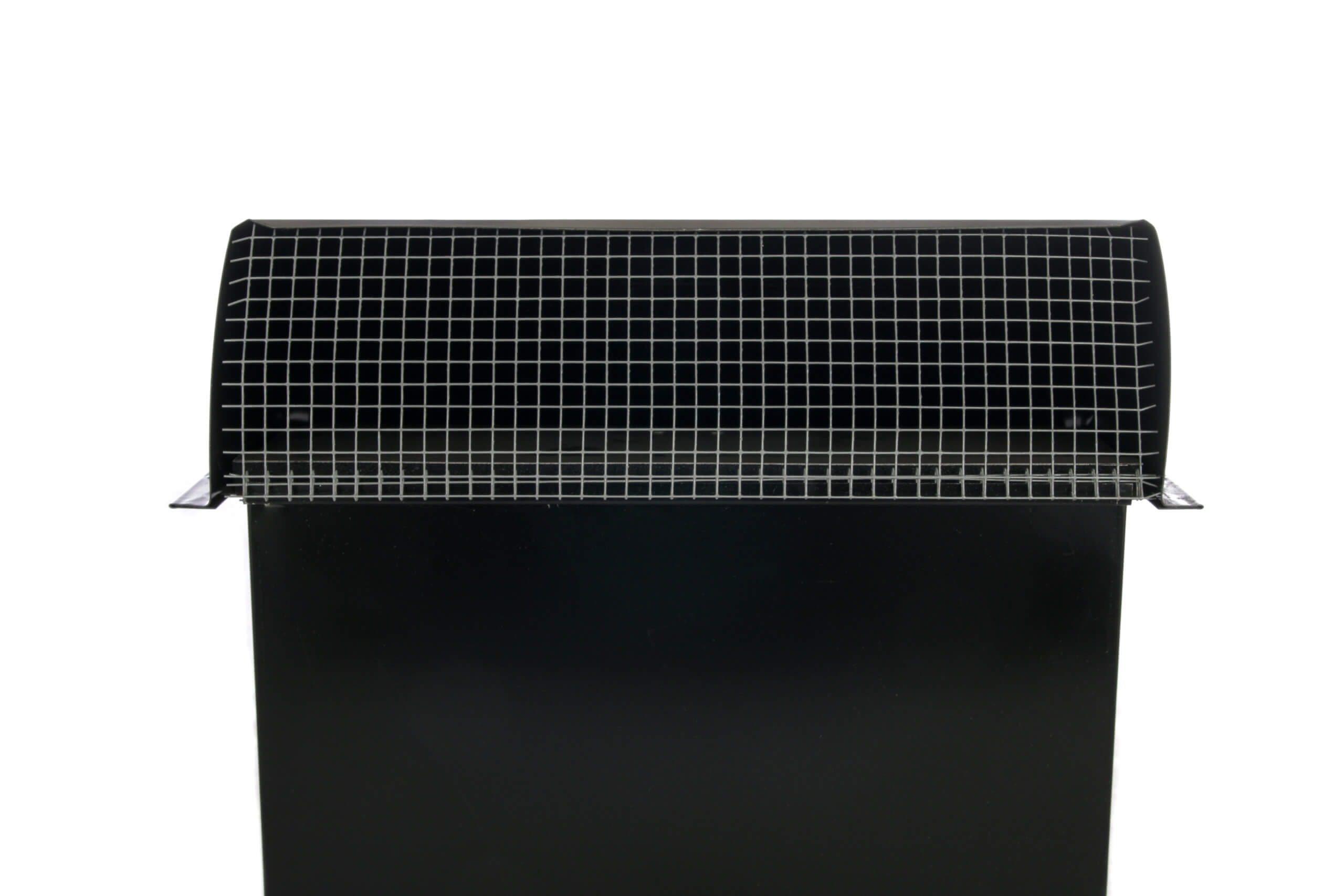

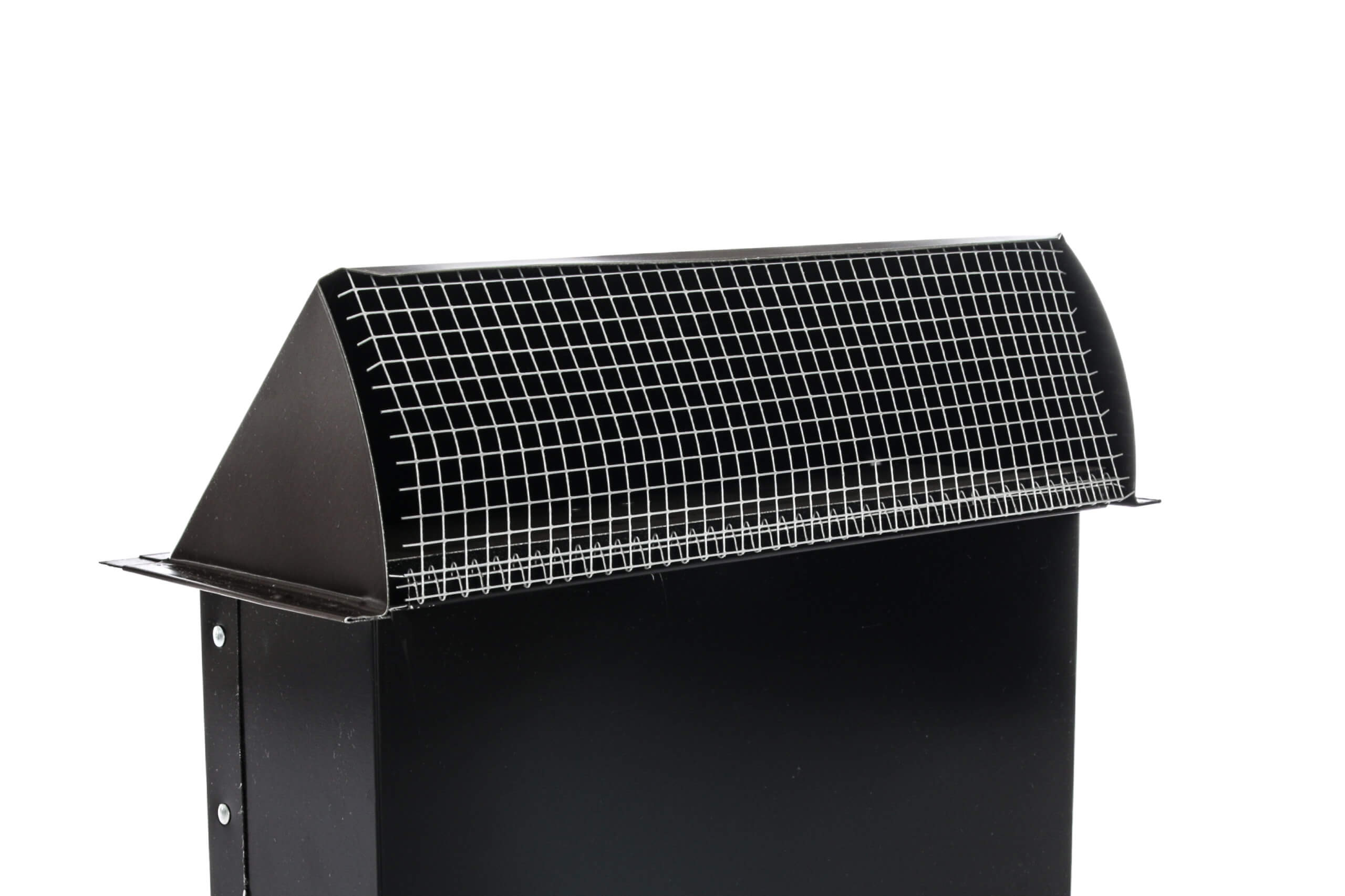

- Available with or without ¼ inch removable bird screen

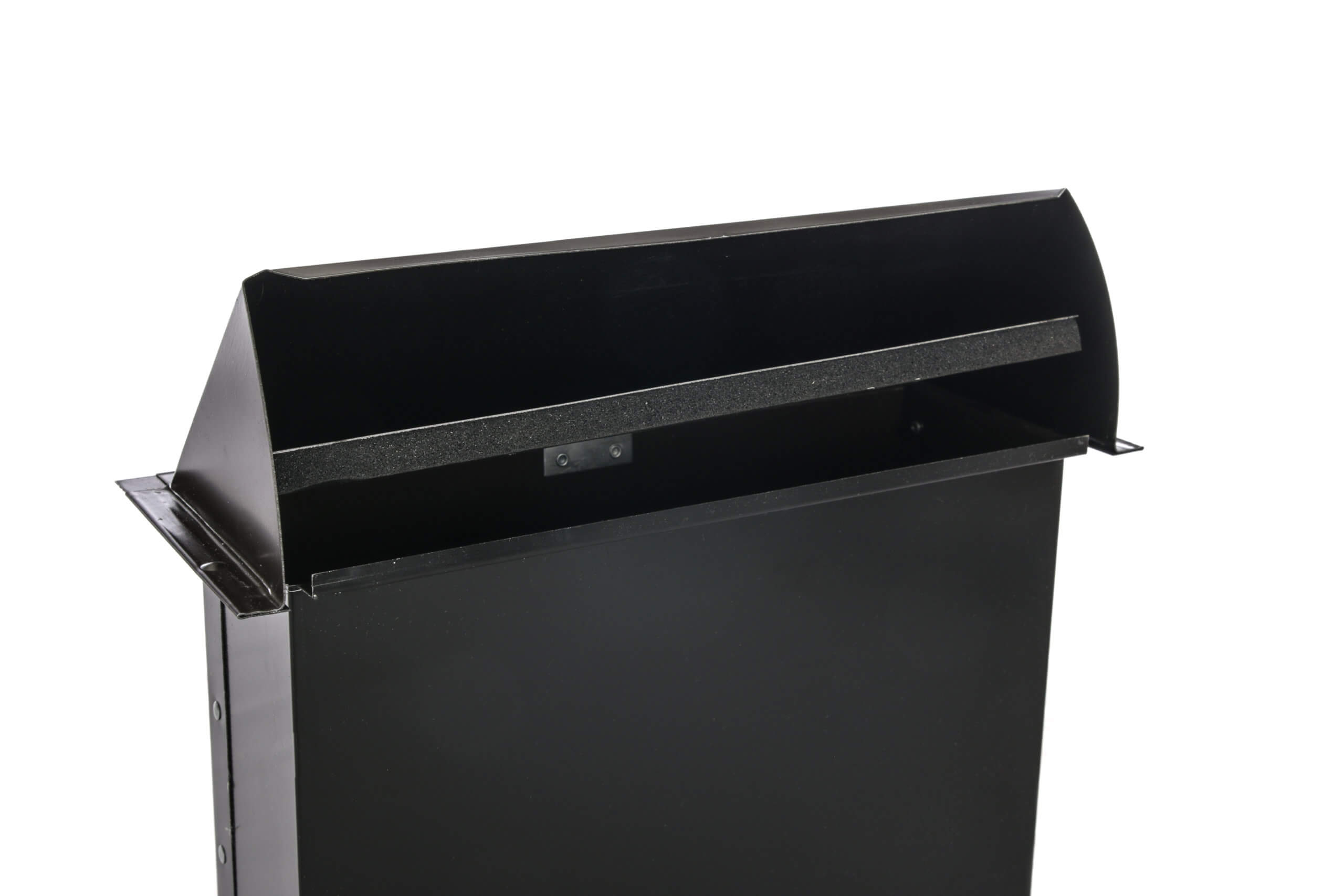

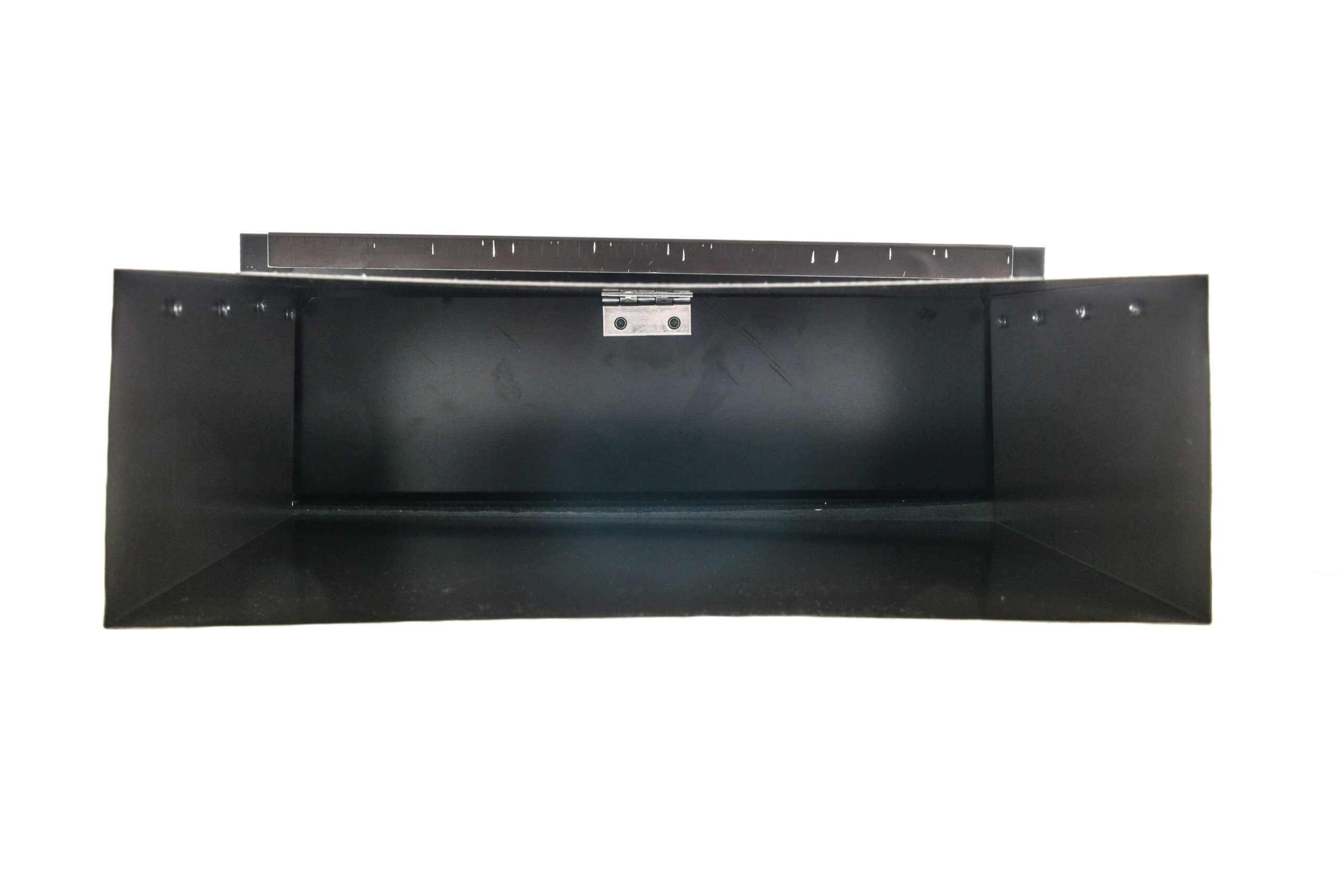

- Comes with a hinged backdraft damper with foam gasket to allow steady airflow only when venting

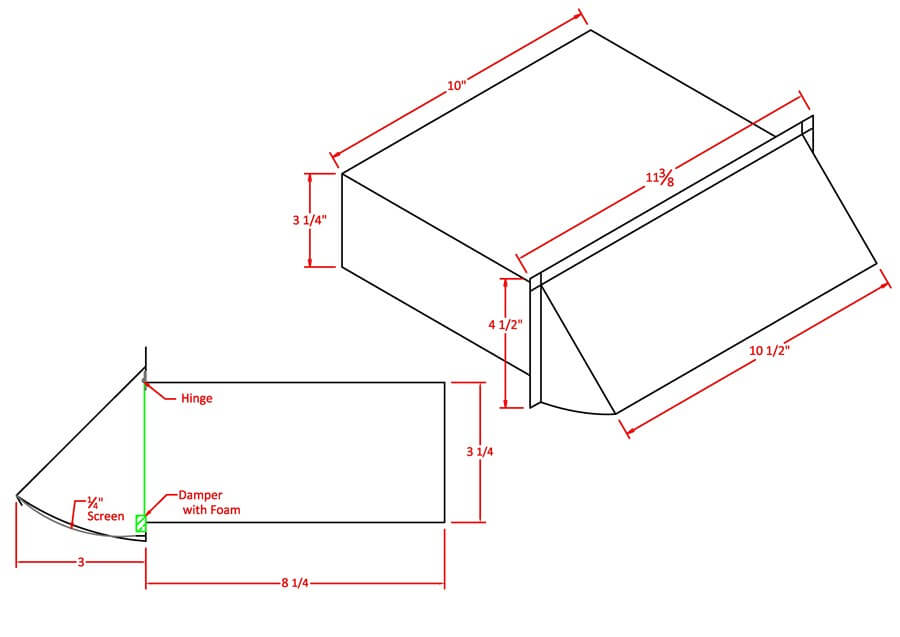

- Comes with an 8-¼ inch long galvanized steel extension built into the flange for wall mounted installation – no screws needed
- Available in black, brown, or white
The FAMCO WV310P rectangular wall vent is designed for through-wall kitchen range exhaust in narrow clearance terminations. This vent features a hinged backdraft damper, and can be ordered either with or without a removable ¼ inch bird screen. Quality constructed from heavy-duty 28 gauge pre-painted galvanized steel, available in black, brown, or white. The FAMCO WV310P fits kitchen ducts sized 3 ¼ inch x 10 inches, providing 26 square inches of free area. The FAMCO WV310P wall vent is manufactured by FAMCO in the United States and comes with a 1-year warranty against product defects and workmanship. If you have any questions about this wall vent, please refer to the FAQs above or feel free to contact us. Download the Product Specs .PDF
Watch the product video on YouTube.
Questions and answers of the customers
My home is 2x4 construction redoing kitchen wall cabinets 15" deep vs standard 12" will have an over the range microwave with rear venting out exterior wall, microwave requires a special bump out bracket due to 15" deep wall cabinets. So rear vent on microwave will not be right against the wall presumably about 3" from wall. I want to confirm this vent has a long enough sleeve for this type of installation.
Q My home is 2x4 construction redoing kitchen wall cabinets 15" deep vs standard 12" will have an o...... Read more answer nowAsked on July 15, 2021 12:55 amA
The sleeve on this vent will be 8-1/4" long
DO YOU HAVE A 31/4 X12
Q DO YOU HAVE A 31/4 X12 answer nowAsked on March 30, 2021 9:24 amA
No - we currently only manufacture these in 10" and 14"
can i use this product vertical
Q can i use this product vertical answer nowAsked on February 27, 2021 8:47 amA
No - this product is designed for horizontal applications only.
can it be attached to a 8" round vent and a 600 CFM fan
Q can it be attached to a 8" round vent and a 600 CFM fan answer nowAsked on December 20, 2020 1:53 pmA
Yes, you could use this vent with this type of application, although this may depend on your local building code, and we do not manufacture a product designed to transition these rectangular dimensions to an 8" round pipe, you would have to source that elsewhere.
10 reviews for Rectangular Wall Vent 3-1/4 in. x 10 in. – Painted
Rectangular Wall Vent 3-1/4 in. x 10 in. – AluminumRated 5.00 out of 5$46.98 – $50.30 Select options
Hooded Wall Vent with Spring Loaded Damper, Gasket and Screen – AluminumRated 4.84 out of 5$34.95 – $59.95 Select options
Hooded Wall Vent with Screen and Damper – GalvanizedRated 4.93 out of 5$27.83 – $114.31 Select options
Painted Wall Vent with Damper (No Screen)Rated 4.83 out of 5$41.35 – $121.04 Select options
Plastic Wall Vent with Fixed LouversRated 4.89 out of 5$7.76 – $28.06 Select options
Aluminum Wall Vent – Reversible Backdraft DamperRated 5.00 out of 5$55.09 – $101.28 Select options
Hooded Wall Vent with Screen (No Damper) – GalvanizedRated 4.78 out of 5$26.57 – $109.31 Select options
Copper Vent Caps
Copper Wall Vent with Damper (No Screen)Rated 4.91 out of 5$101.46 – $176.15 Select options
Kitchen exhaust vent –
Exactly what I wanted
Well packaged and well made. Very satisfied.
David (verified owner) –
Nicely made,good quality. I had to shorten the rectangular sleeve by about an inch, but then it slipped right into place. Fits perfectly. Came quickly.
brett johnston (verified owner) –
Shelton (verified owner) –
Excellent product, excellent service
Jim Wuerffel (verified owner) –
Arrived quickly, good quality. Had to flare open top & bottom edge to fit over hood outlet, as they are same 3 1/4 inch height.
Side measures 10 inches- fits over the 9 3/4 hood outlet. (Standard on most hood fans)
Easy to check & install very satisfied!
Anonymous (verified owner) –
Excellent service, thank you.
Chris (verified owner) –
Great people to do business with.
DONALD COOP (verified owner) –
Just what I was looking for glad I found you on the internet, fast service and quality
Jonathan D. (verified owner) –
Exactly as described and very good quality. Shipping time was reasonable.
Anonymous (verified owner) –
